コンクリートトラスの開発 Development of Concrete Truss System

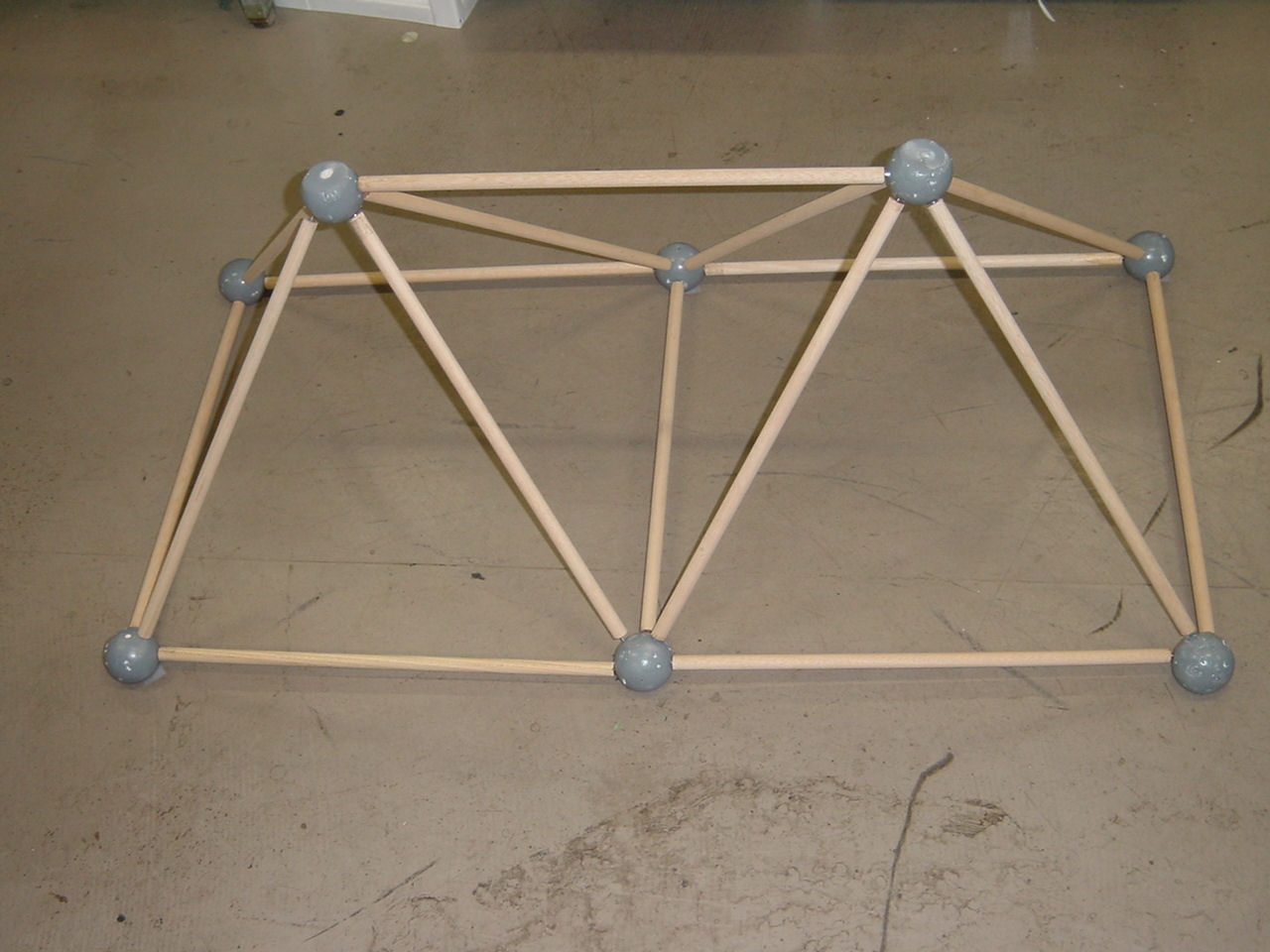

Scale model

Scale model (1/5)

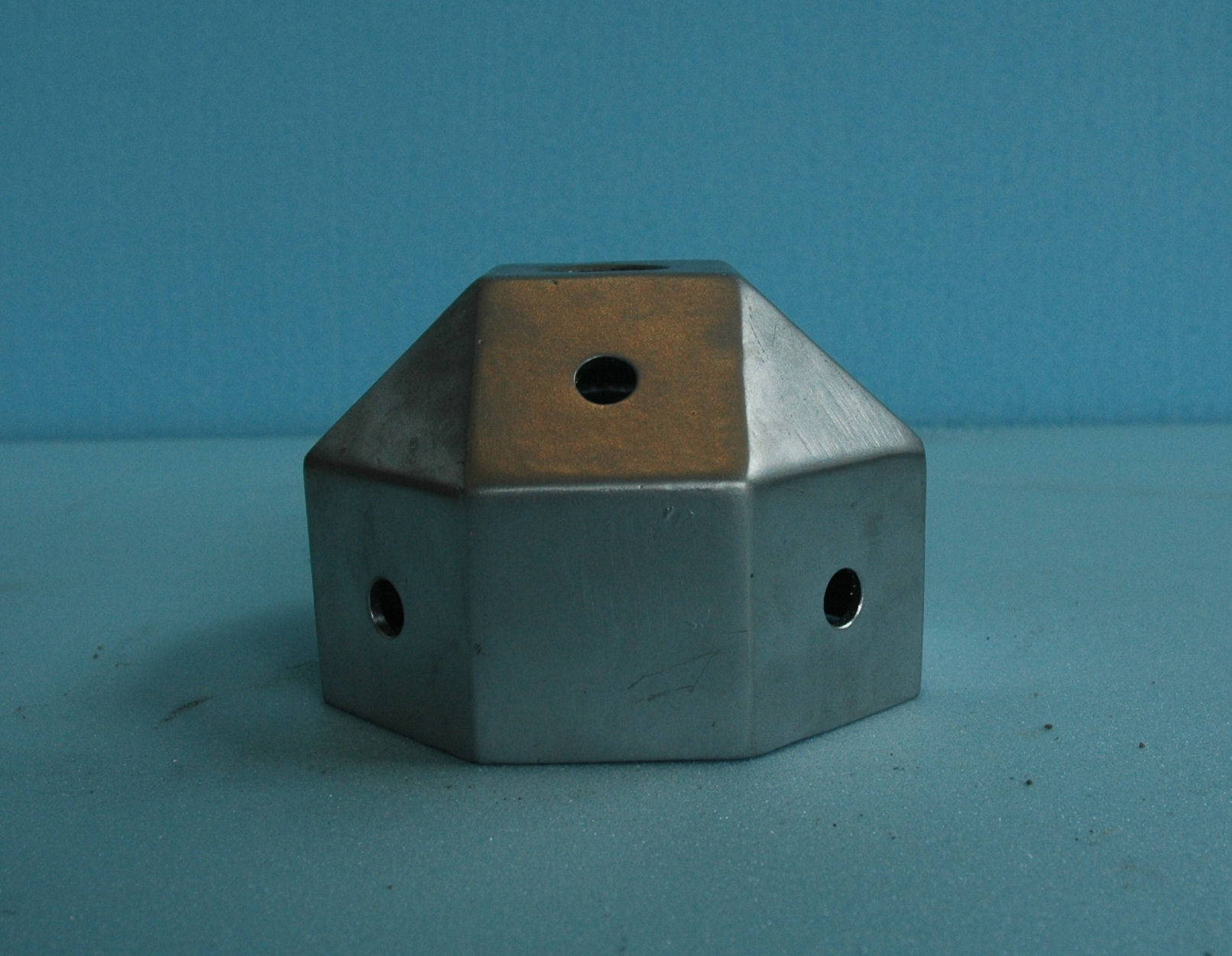

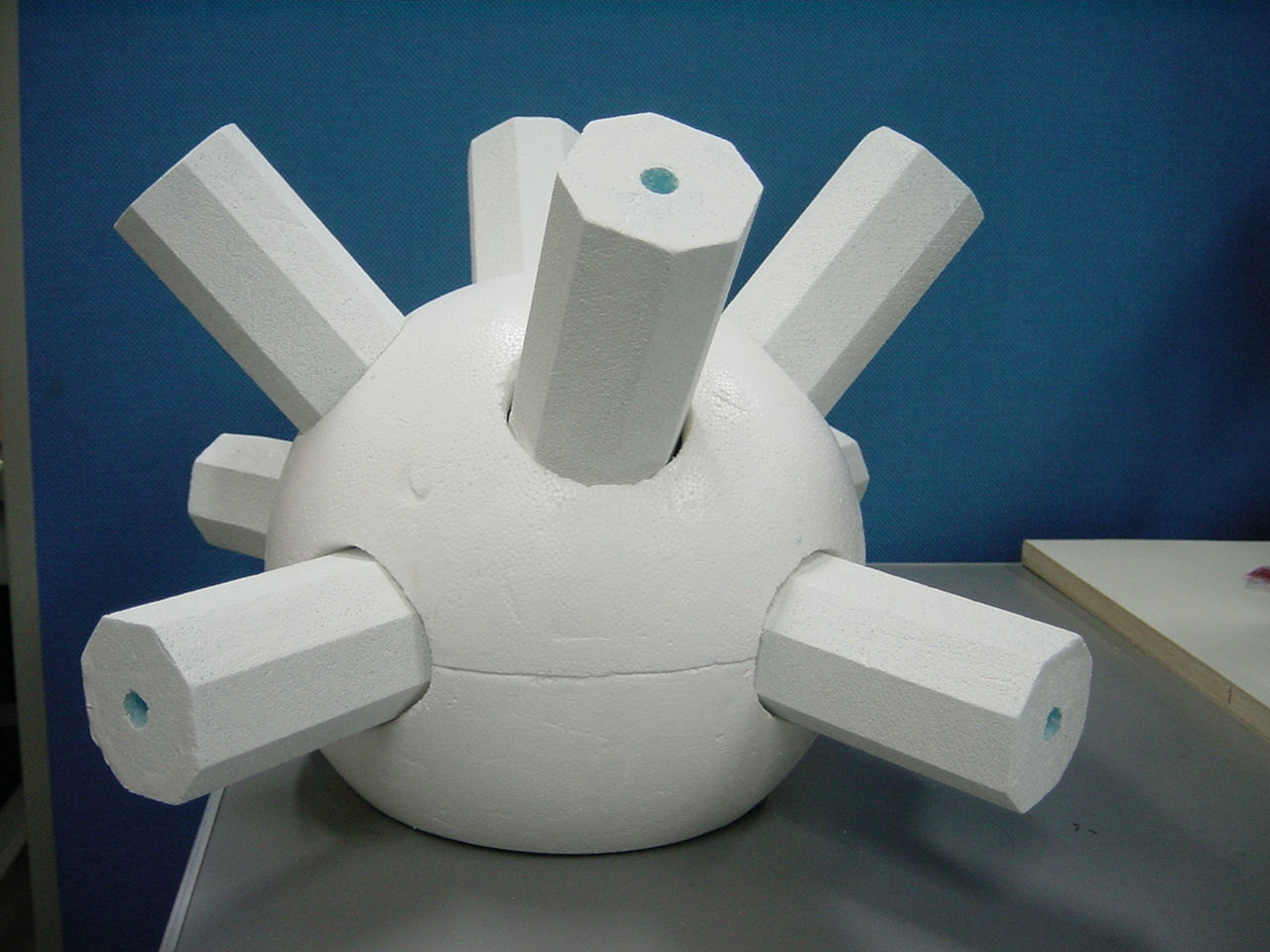

Joint model

Joint model (1/1)

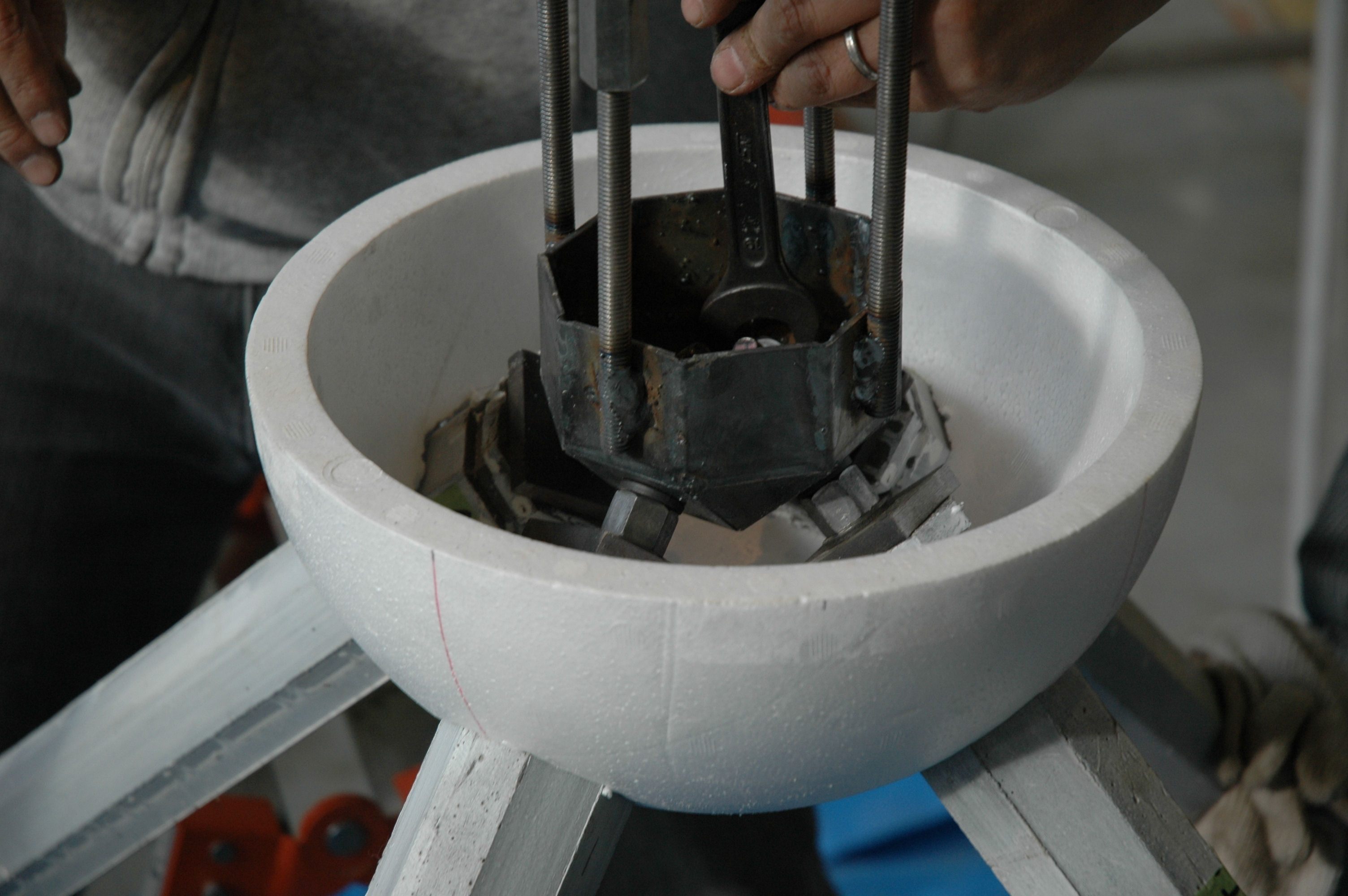

Housing in joint

Housing in joint

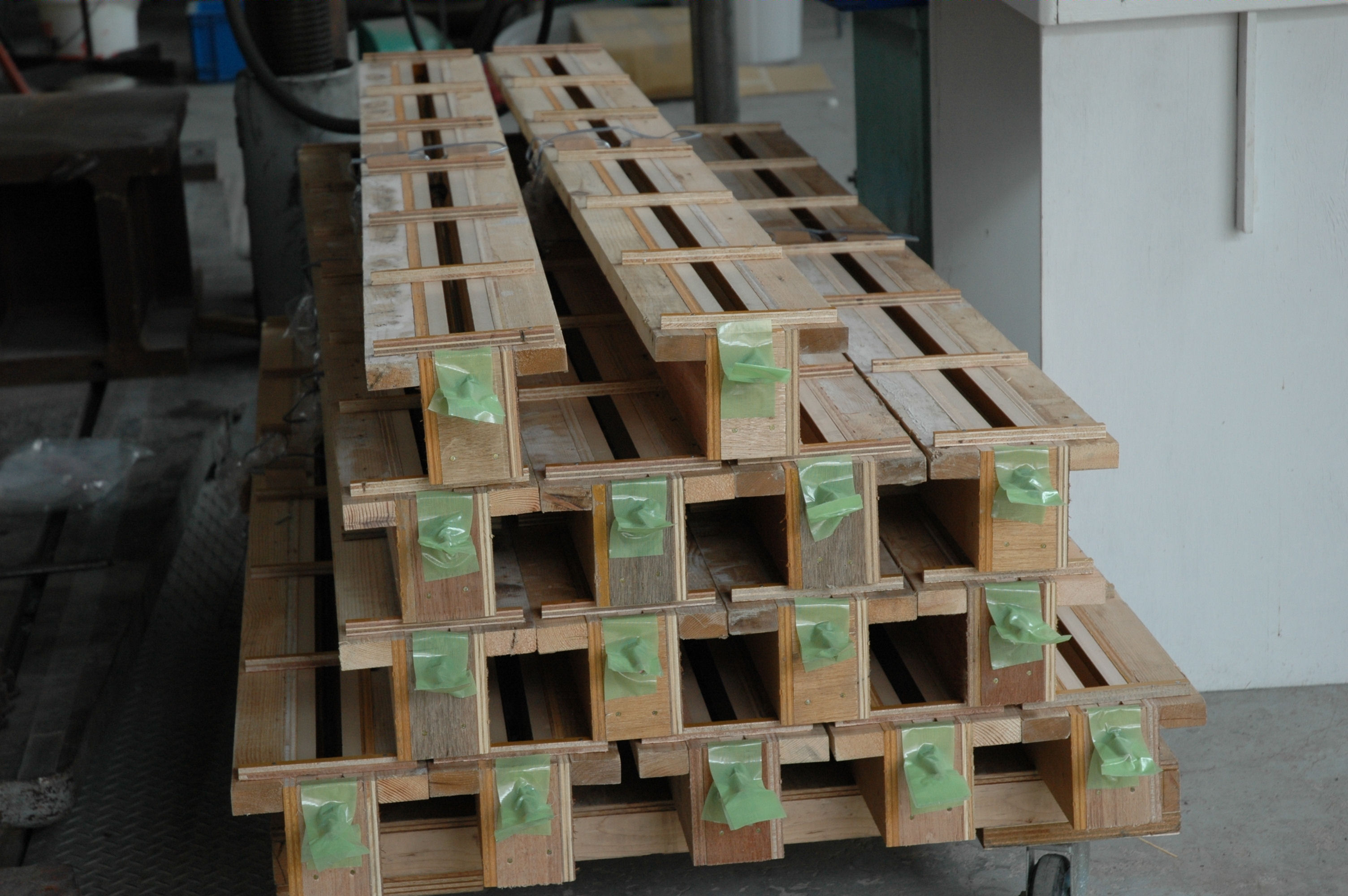

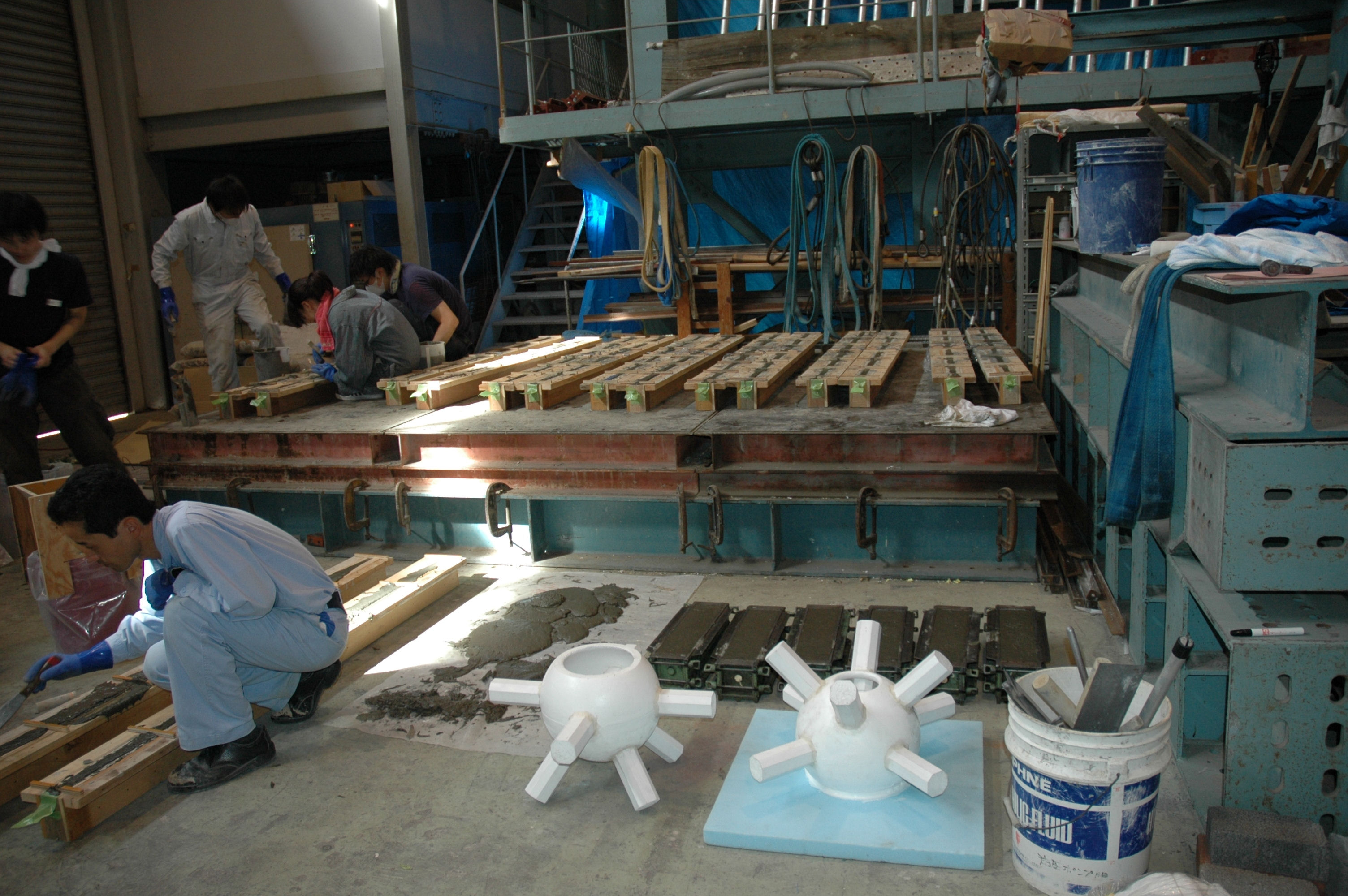

Mold of member

Mold of member

Casting of member

Casting of member

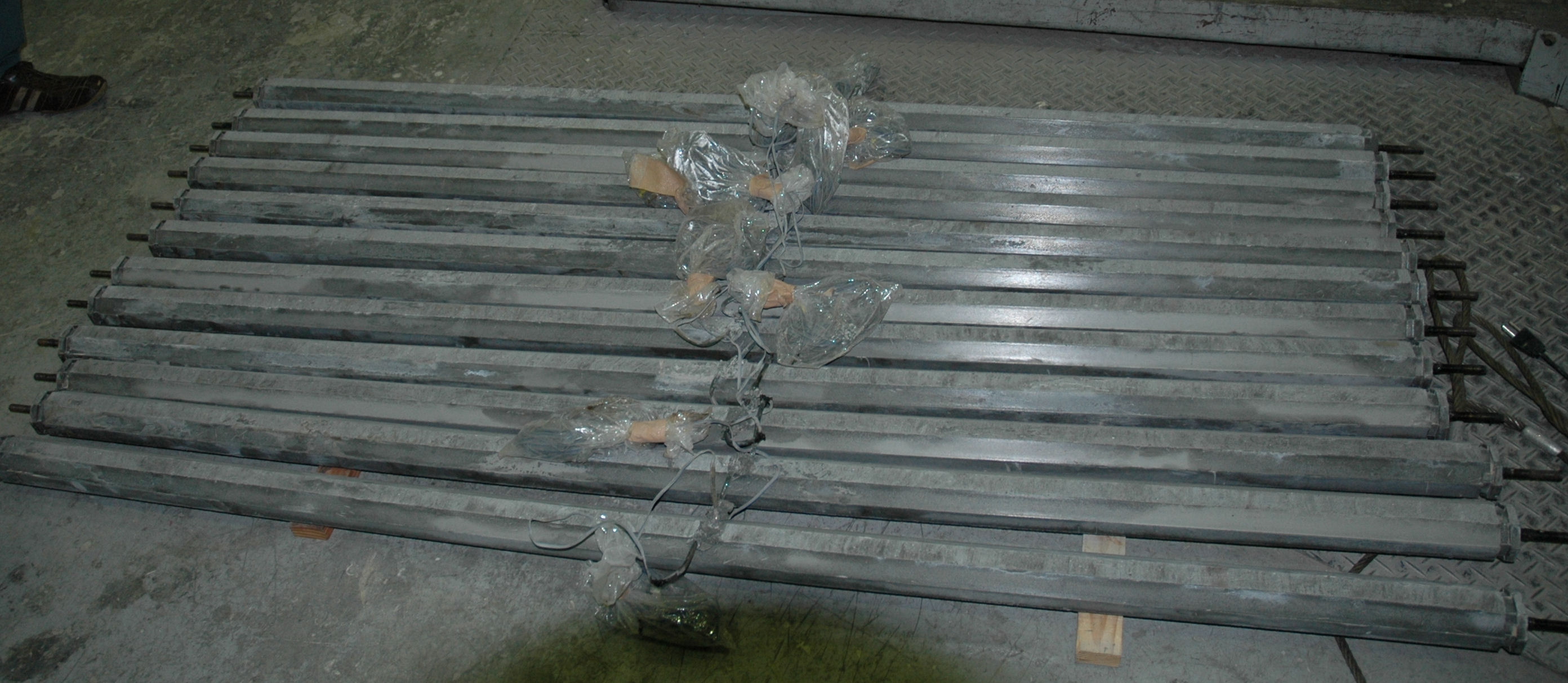

Precast member

Trial casting

Trial casting

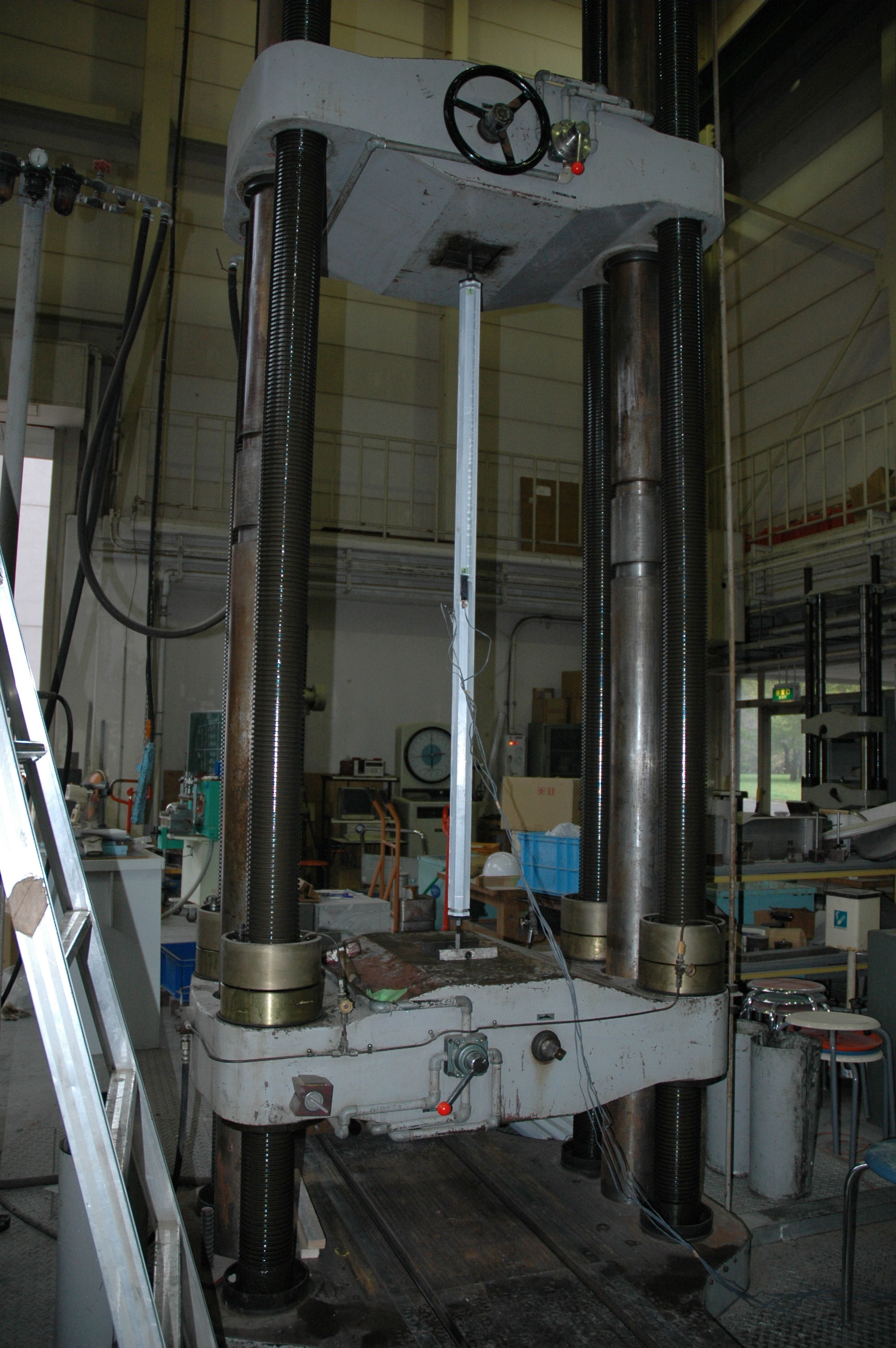

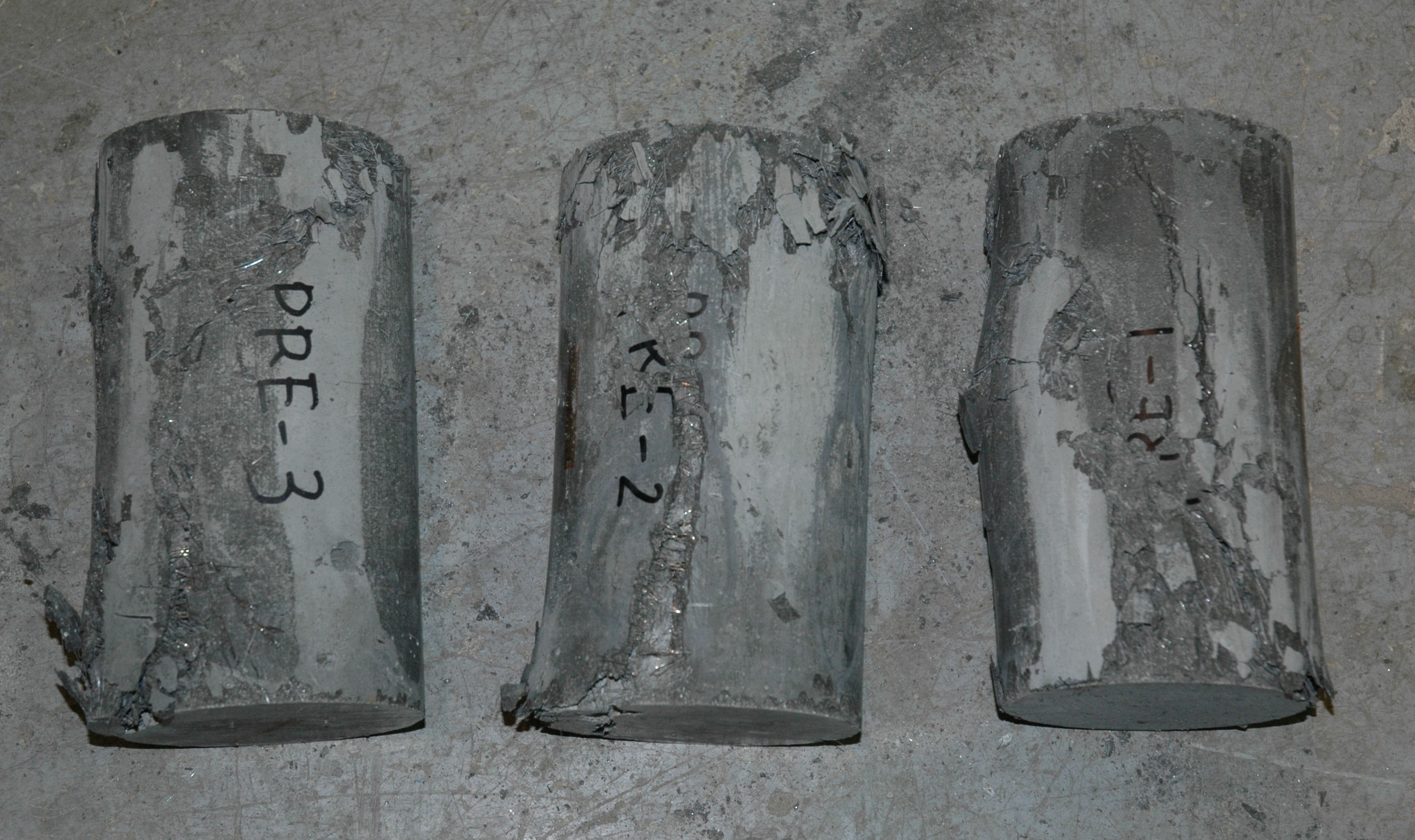

Compression test of UFC

Bending test of UFC

Bending test of UFC

Prestress introduction

Prestress introduction

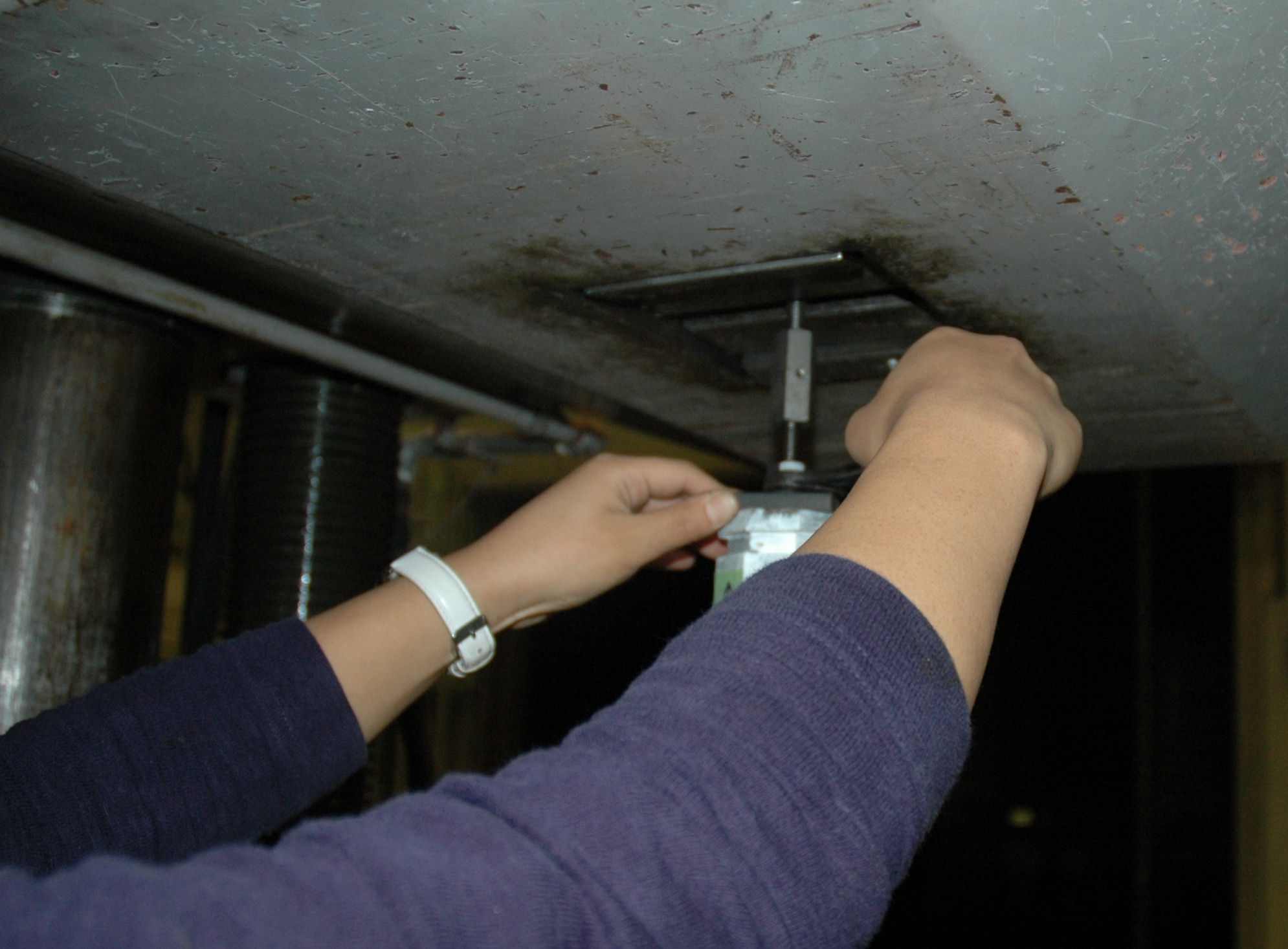

Fastening of tendon

Fastening of tendon

Set up (horizontal member)

Set up (Horizontal member)

Set up (diagonal member)

Set up (diagonal member)

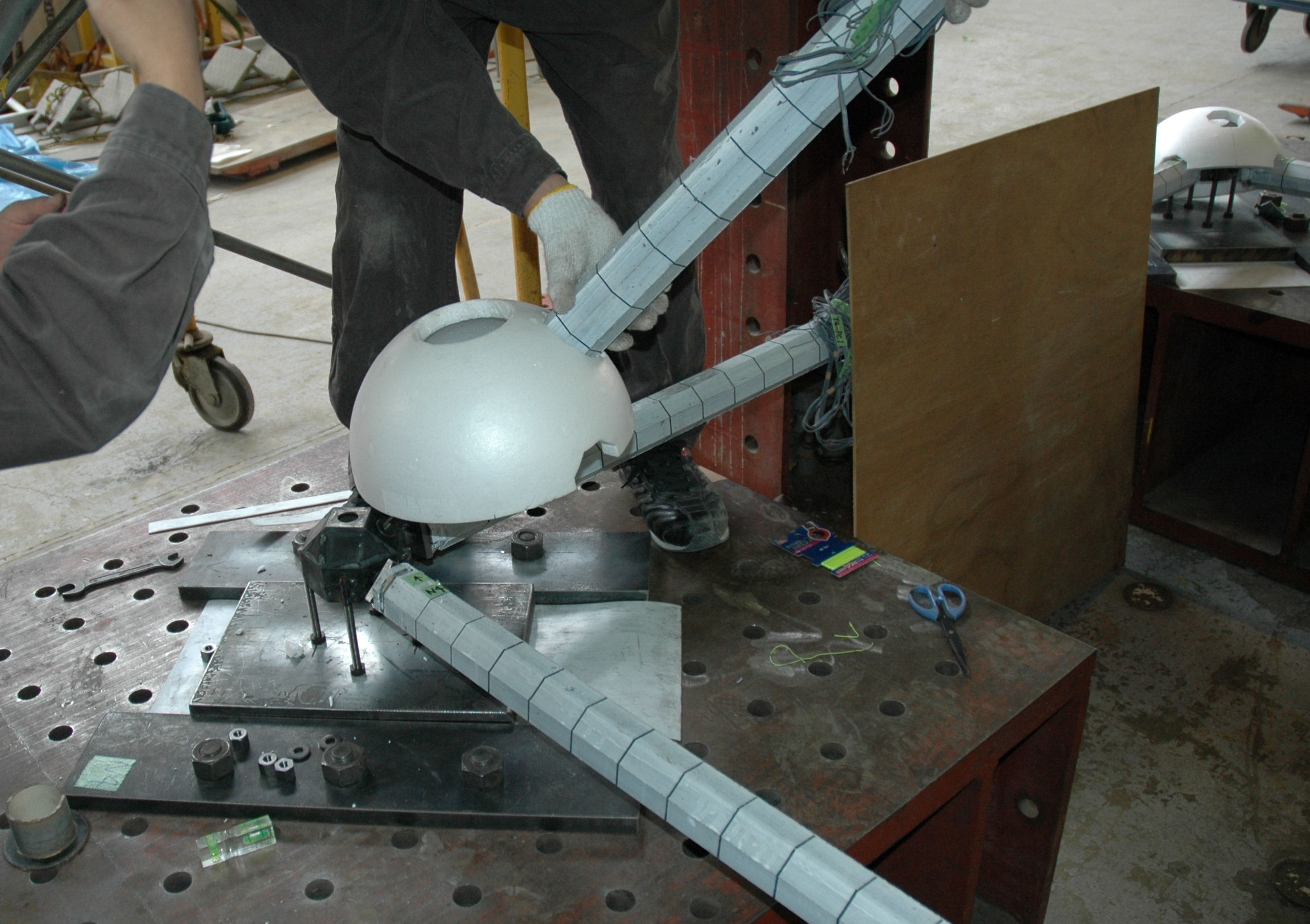

Set up (joint)

Set up (joint)

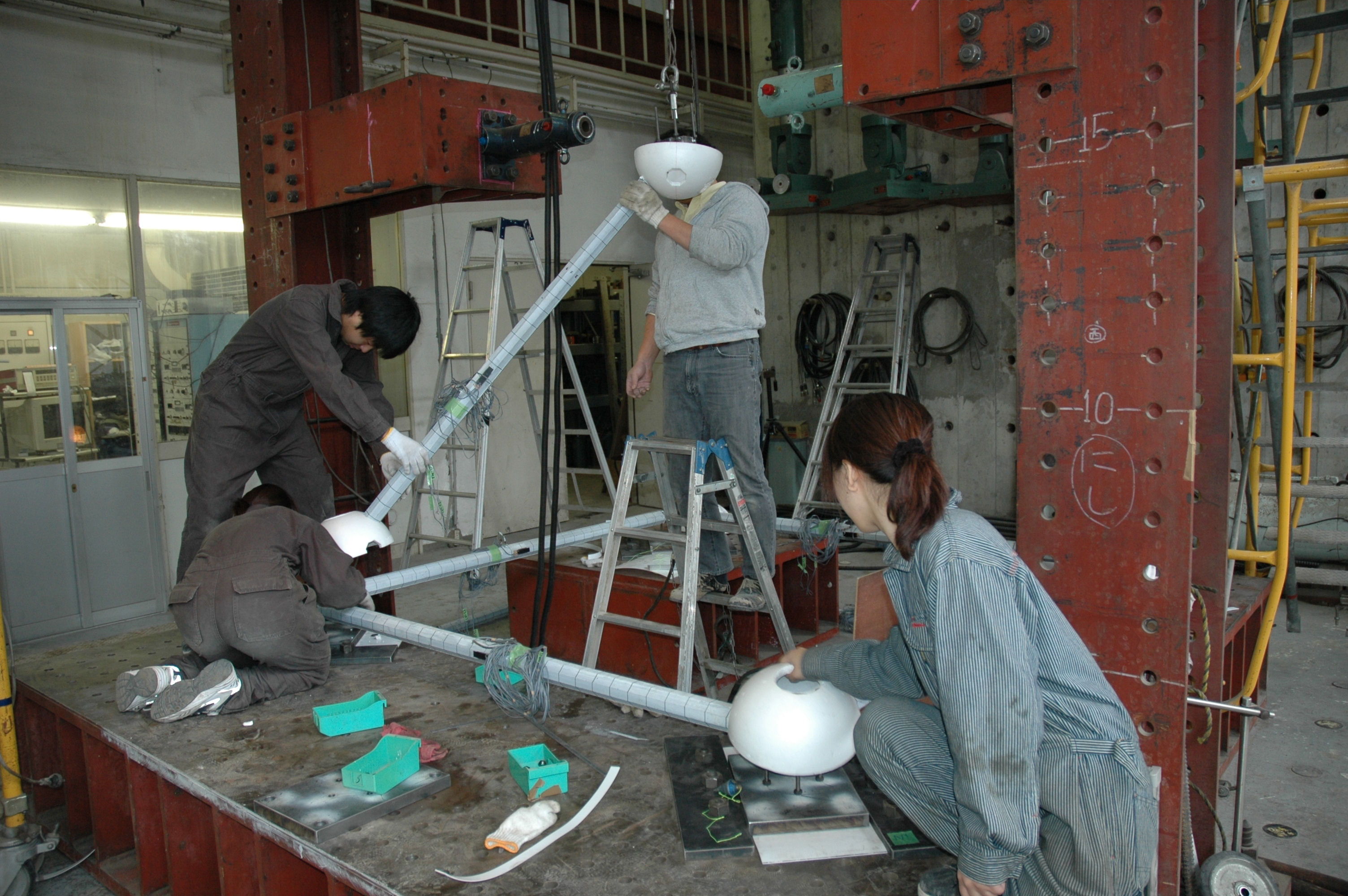

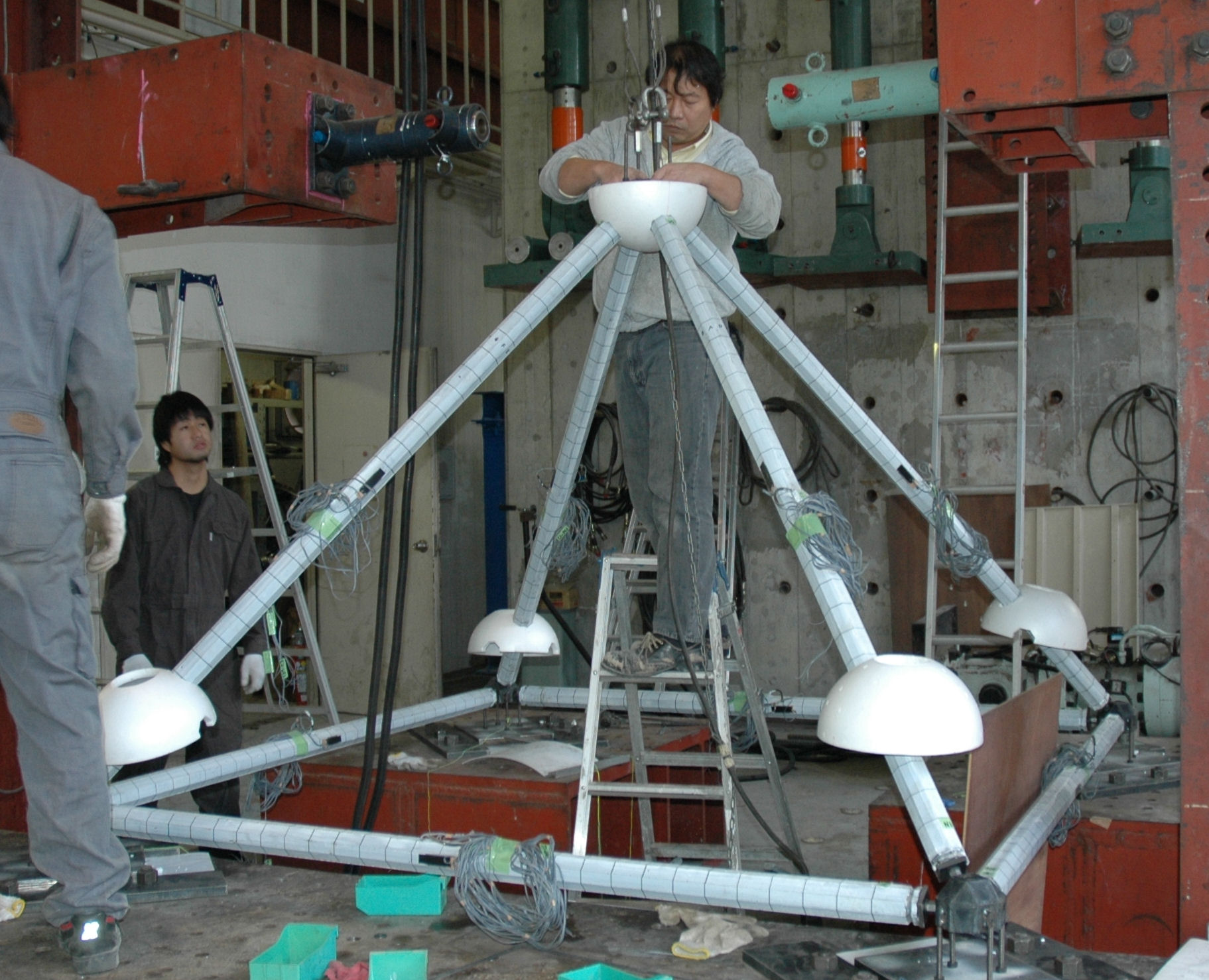

Full set up

Full set up

Joint detail

Joint detail

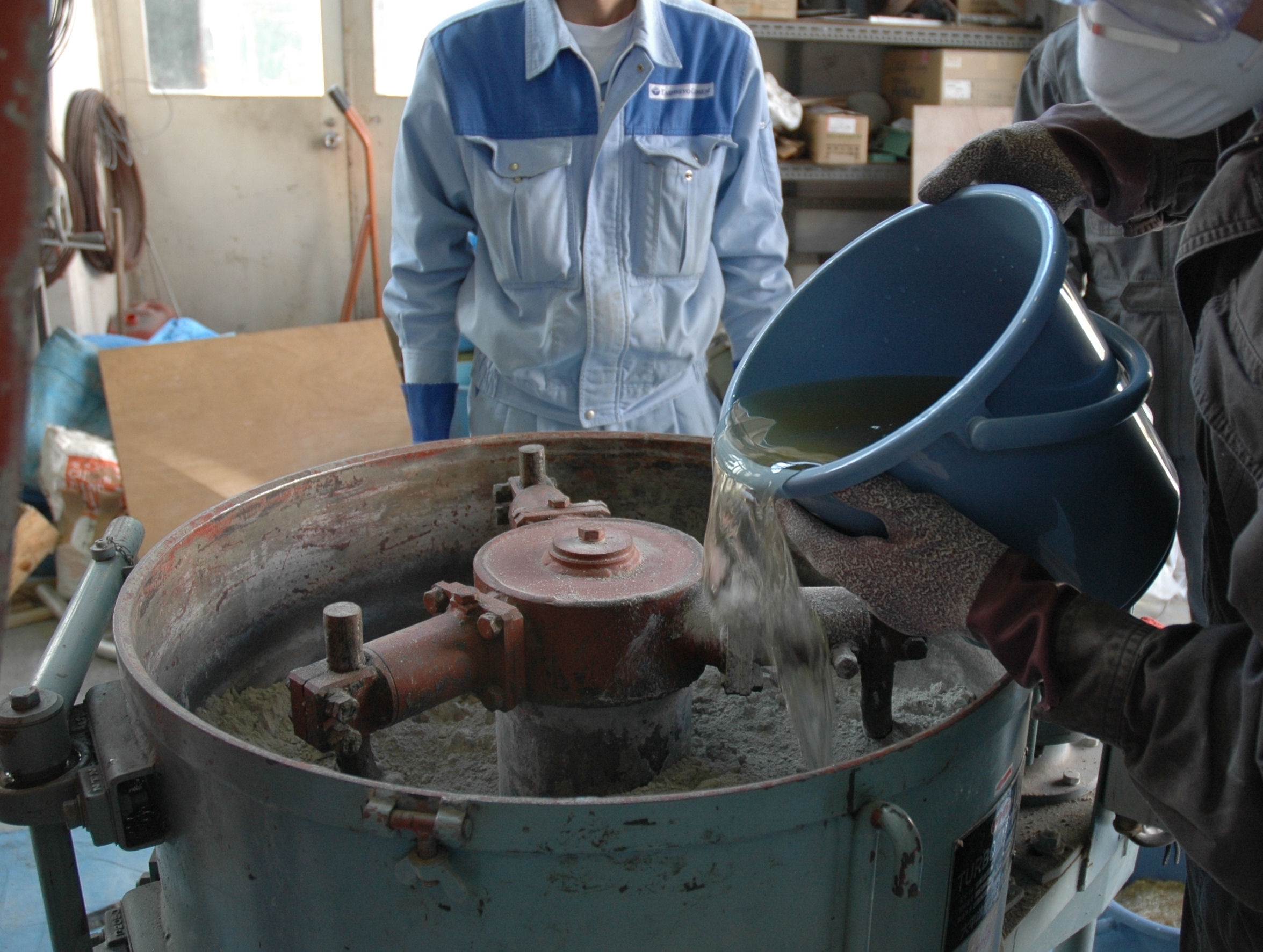

Mixture of UFC

Mixture of UFC

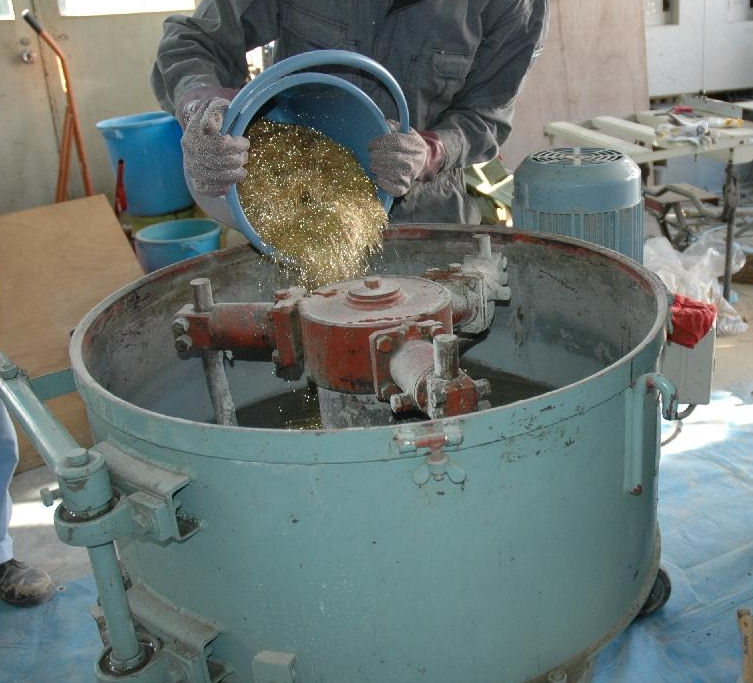

Fiber adding

Fiber adding

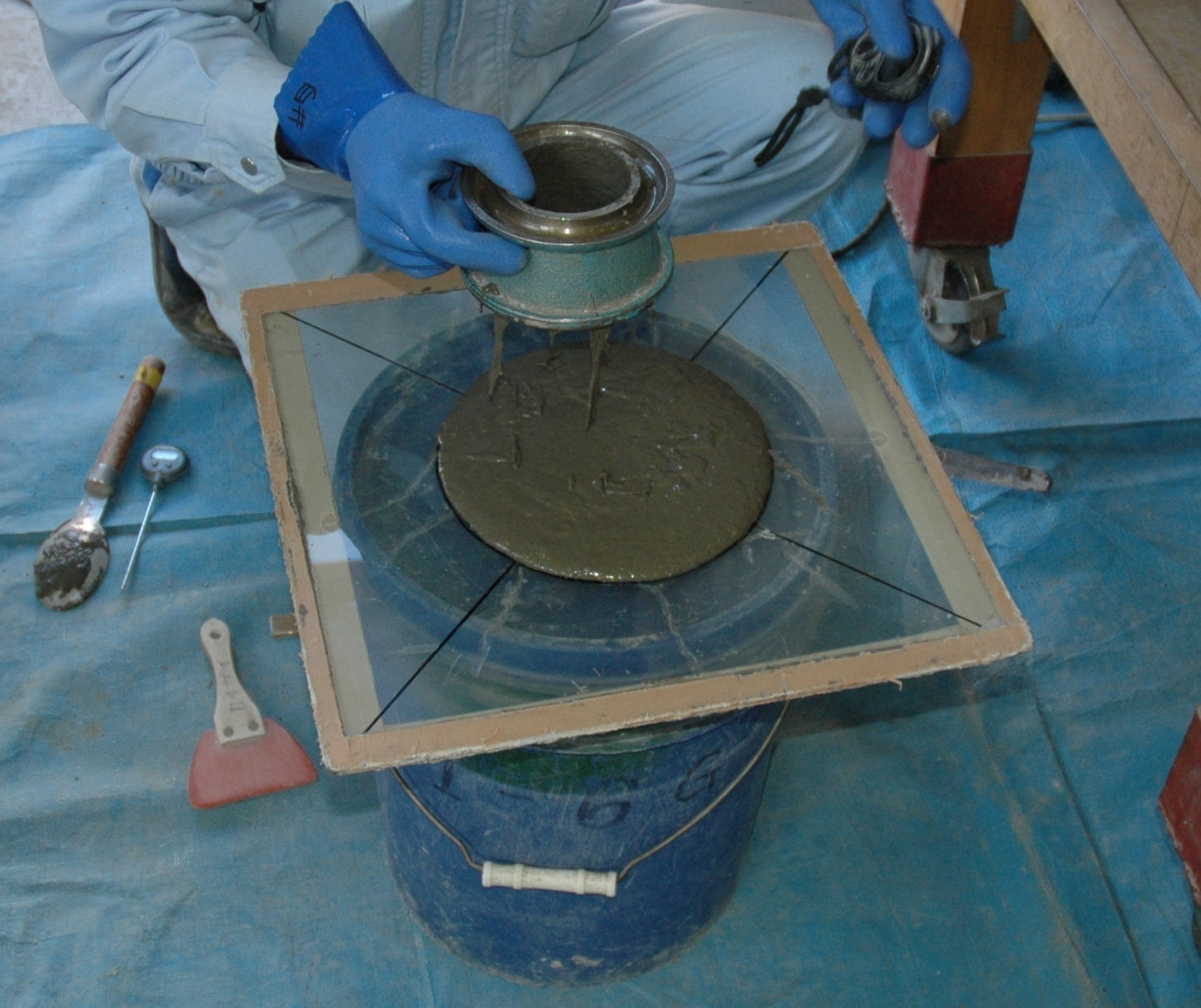

Flow test

Flow test

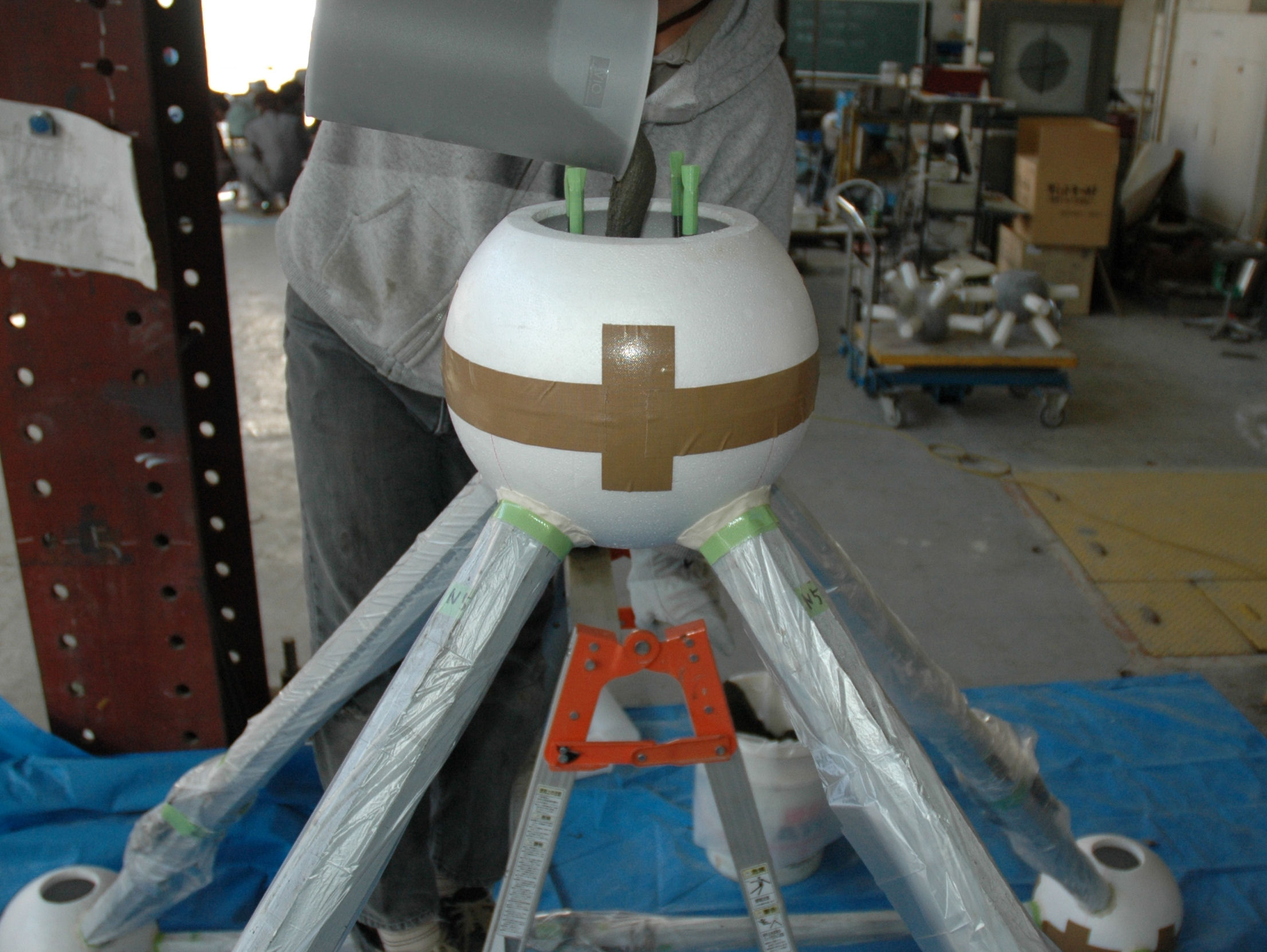

Joint casting

Joint casting

Curing

Curing

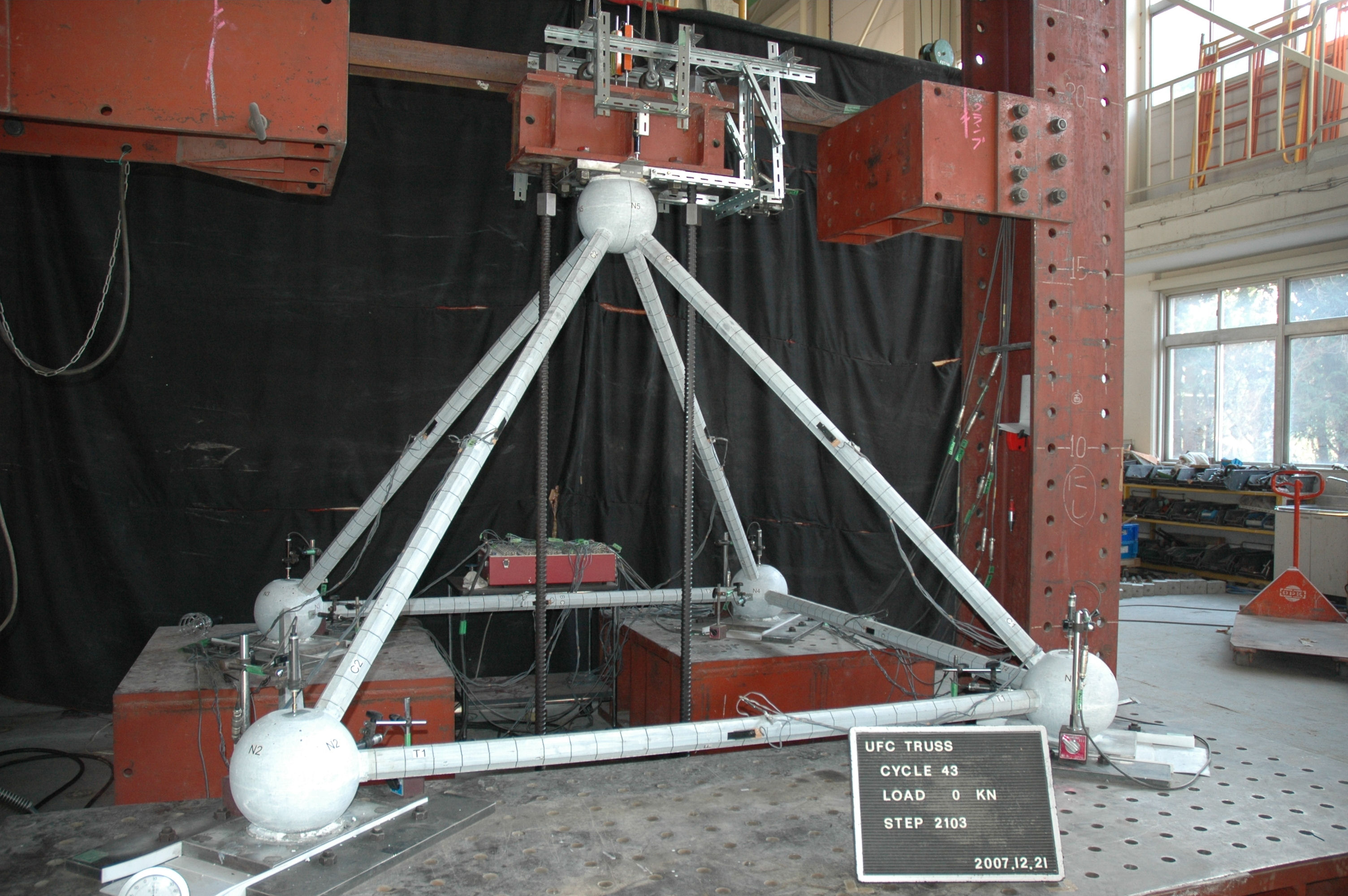

Loading set up

Loading 360kN

Collapse (compression member C3)

Collapse (compression member C3)

Collapse (compression member C4)

Collapse (compression member C4)

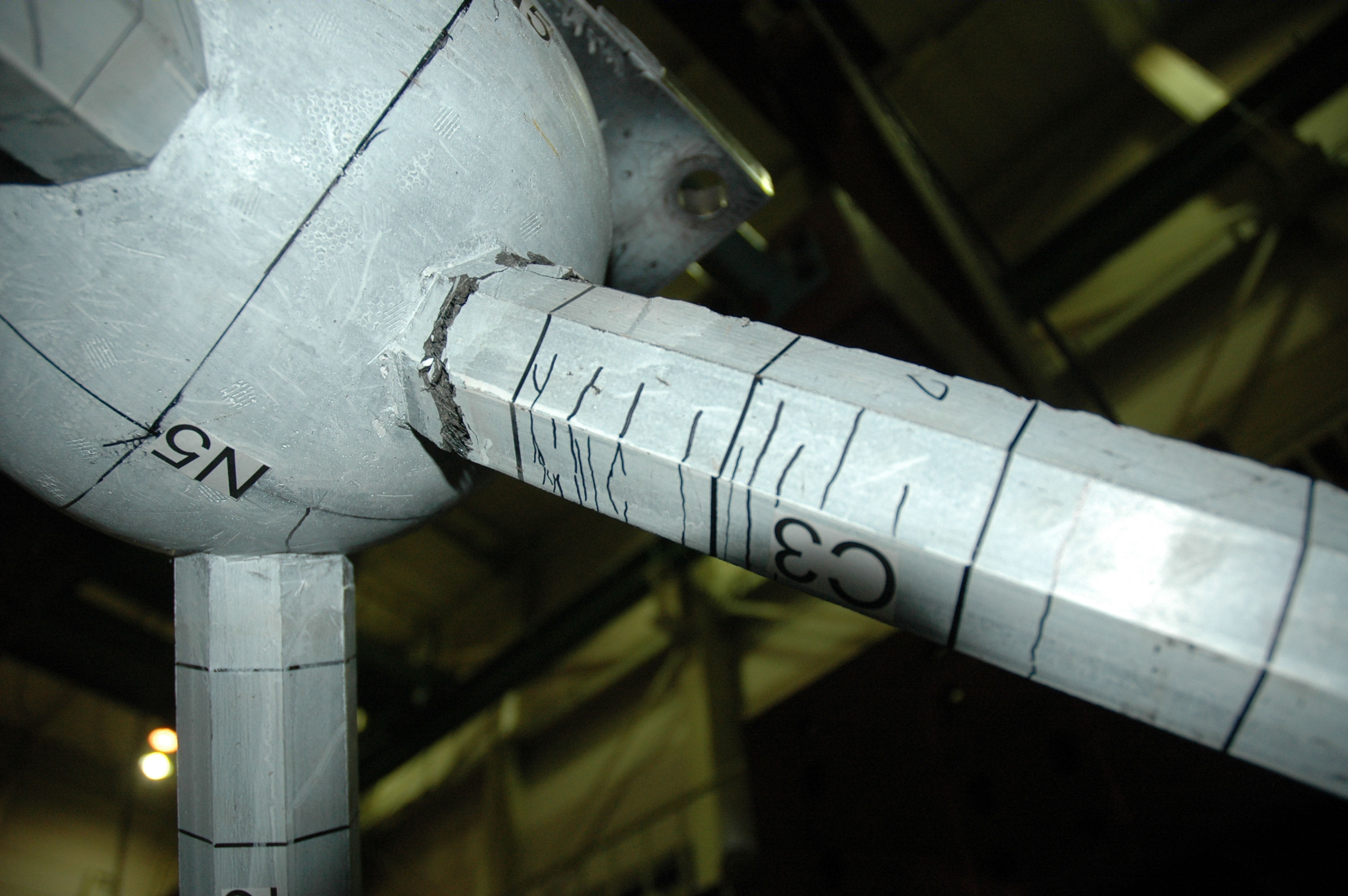

Crack at C3

Crack at C3

Crack at C3

Crack at C3

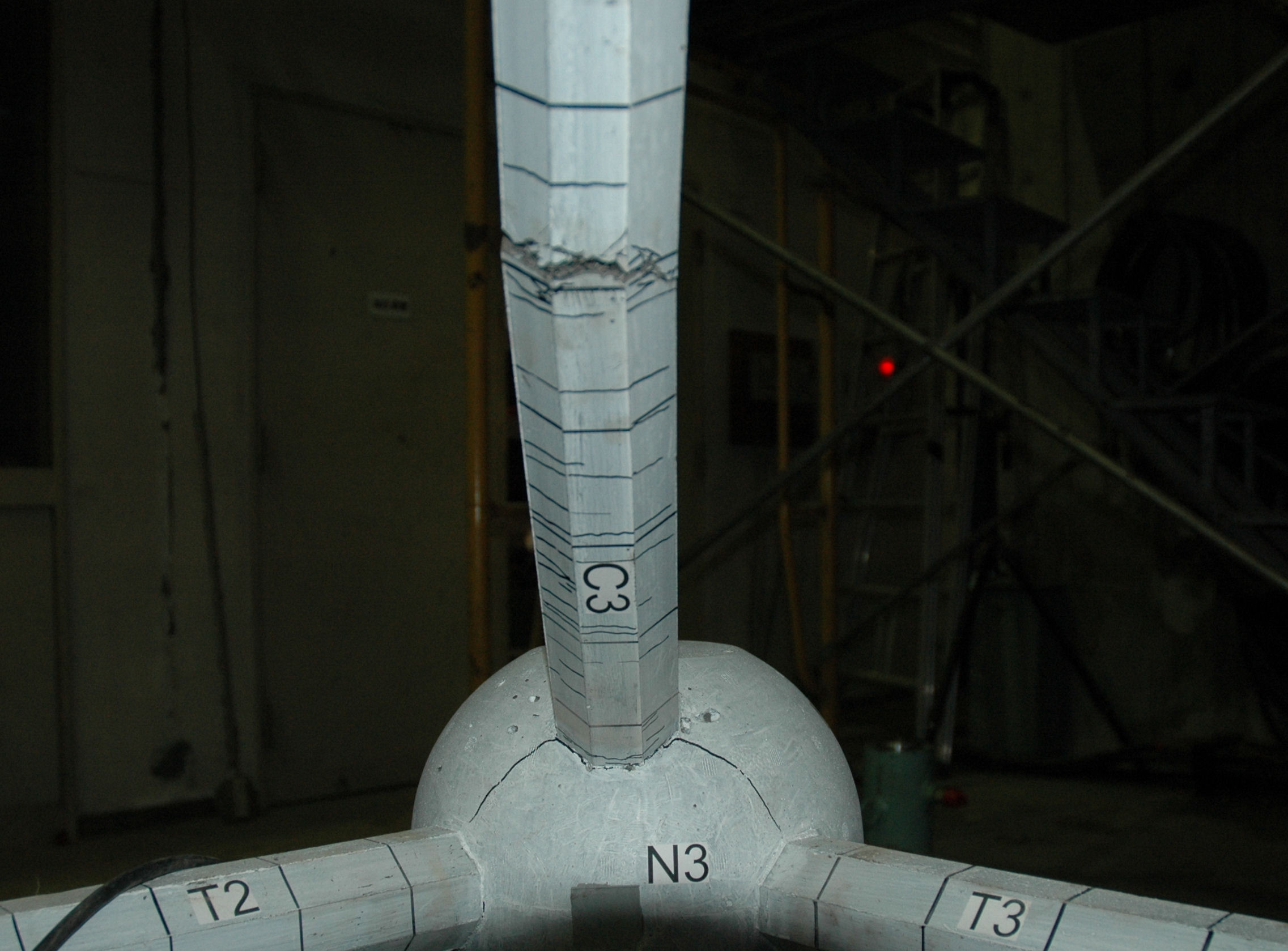

Failure in C3
