D. Isobe: Numerical Simulations for Investigation on True Cause of the Total Collapse of the WTC Towers, Proceedings of International Symposium on Structures under Earthquake, Impact, and Blast Loading 2008 (IB'08), (2008), pp. 157-164, Osaka, Japan.

Some fire-induced collapse analyses are carried out on a high-rise tower
model, as shown in Fig. 1, which presents an important role in an investigation
of the true cause of the total collapse of the WTC towers. An outrigger
truss system is placed on the roof top of the model, and the influence
of the system against structural vulnerability of the tower is verified
in the analysis. The tower is modeled with 9,360 linear Timoshenko beam
elements and contains
6,644 nodes and 39,600 degrees of freedom. For example, the sectional sizes of
the columns used on the 1^{st}
floor are □-700×28. We
set the member joint strength ratio *C _{M}* to vary from 0.1 to
0.6. We applied three fire patterns; middle three rows to outer three rows,
from the 21

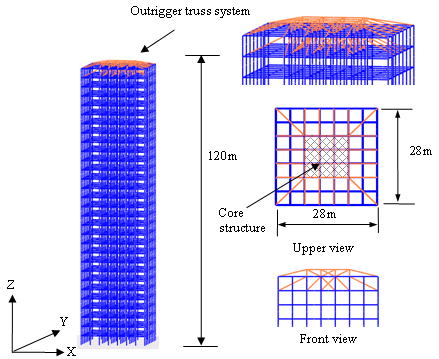

Fig. 1 Analyzed model

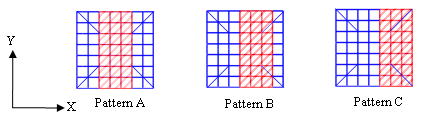

Fig. 2 Assumed
fire patterns (21F~24F)

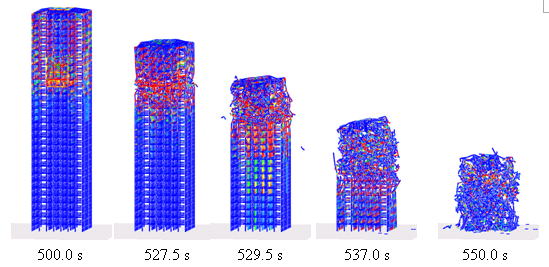

Fig. 3 Collapse
mode (*C _{M}_{ }*= 0.3, fire pattern A)

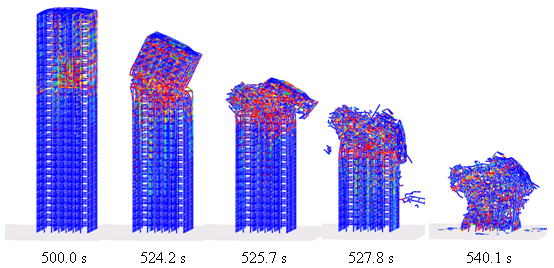

Fig. 4 Collapse
mode (*C _{M}_{ }*= 0.3, fire pattern B)

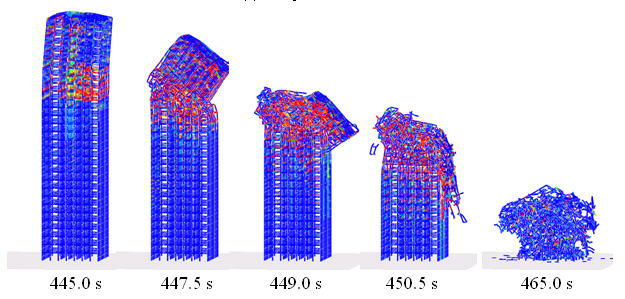

Fig. 5 Collapse
mode (*C _{M}_{ }*= 0.3, fire pattern C)

Figures 3, 4, 5 show the collapse modes of the tower exposed to each fire
pattern when the member joint strength ratio *C _{M}* was set to 0.3 and the axial force ratio was set to 0.33 with the regular-strength outrigger truss system (the structural strength was similar to the beams on the 1st floor) placed on the roof. In all of the cases, a total collapse was inevitable and the results clearly show the effect of the weak member joints and the effect of the strength reduction due to the elevated temperatures. As shown in the figures, the shock wave propagates through the columns and moves faster than the falling motion of the upper structure, which destroys the member joints as it moves towards the ground level. The fire patterns do not seem to affect the overall collapse behavior; however, the slant angles at the collapse initiation phase are different, and the collapse initiation time is shorter if the fire pattern is asymmetrical. The collapse initiation time depends on the strength and the number of outrigger trusses that support the load paths near structural deficiencies. In general, the models with outrigger truss systems withstand for a longer time due to catenary action under the condition that the load paths are protected.
